PM2865 Fluoride Phosphor Powder
| Catalog No. | PM2865 |
| Color | Red |
| Particle Size | D50 15-40 um |
| Excitation Range | 440nm-470nm |
| Color Point (x,y) | 0.691-0.693, 0.308-0.306 |
| Emission Peak Wavelength | 630nm-640nm |
Fluoride Phosphor is a kind of narrow-band emission red phosphor, which has the characteristics of high light efficiency and high color purity. The unique crystal synthesis technology ensures good resistance to degradation. SCC offers a high-quality Fluoride Phosphor at a very competitive price.
Related products: Red Nitride Phosphor Powder(YG630), KSF Phosphor Powder
Description
Fluoride Phosphor Description
SAM’s Fluoride Phosphor (KSF phosphor) is a kind of narrow-band emission red phosphor, which is mainly used in the packaging of high-color gamut liquid crystal backlights and high-color rendering white LEDs. It has the characteristics of high light efficiency and high color purity. The unique crystal synthesis technology ensures good resistance to degradation. Our KSF phosphors enable increased color gamut and superior brightness for display backlighting. The narrowband emission enables up to 30% better color filter throughput, higher screen brightness, and lower energy consumption.
Fluoride Phosphor Specifications
|
Product |
Peak Wavelength |
Color Point |
Particle Size |
|
|
p (nm) |
CIEx |
CIEy |
D50V (μm) |
|
|
SAMFR6931-04A |
632 |
0.693 |
0.307 |
23 |
|
SAMFR6931-04B |
632 |
0.693 |
0.307 |
25 |
|
SAMFR 6931-04C |
628 |
0.693 |
0.307 |
25 |

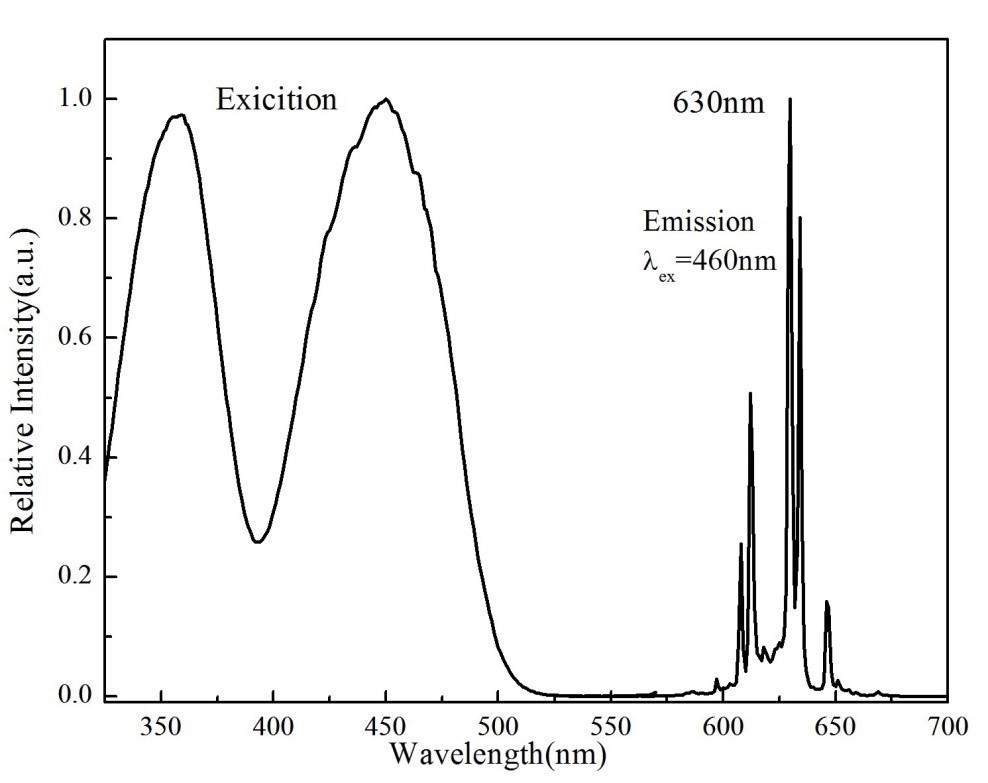

Fluoride Phosphor Spectrum
Fluoride Phosphor Applications
-General Lighting
-LED retrofit lamps
-Architectural
-Retail display
-Commercial / industrial
-Entertainment
-Automotive interior lighting
-Display Backlighting
-TV and monitor
-Tablet PC and mobile display, etc.
