PM2863 Nitride Phosphor Powder

About This Item

Catalog No.
PM2863
Catalog No. PM2863
Color Orange, Red
Particle Size D50 7-18 um
Excitation Range 360nm-470nm
Color Point (x,y) 0.612-0.68, 0.387-0.318
Emission Peak Wavelength 610nm-670nm

Nitride Phosphor is one kind of rare earth luminescent materials, which has a strong M-N binding force. Stanford Advanced Materials (SAM) is a worldwide supplier of Nitride Phosphor and offers high-quality Nitride Phosphor at a very competitive price.

Related products: Yellow Green Aluminate Phosphor Powdergreen Silicate Phosphor, Aluminate Phosphor Powder

Quantity

kg

Technical Service

Need help? Our team of experienced scientists is here for you.

Description

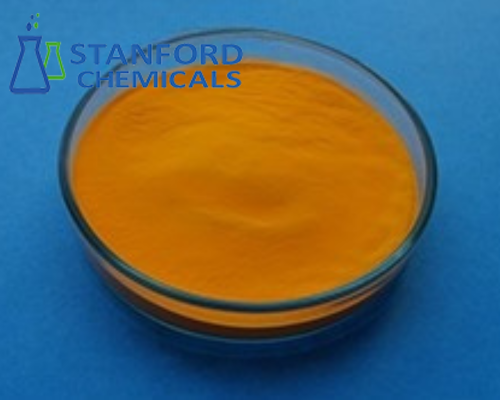

Nitride Phosphor Powder Description


Nitride Phosphor Powder is an alkaline earth metal silicon nitride rare earth ion-activated phosphor with high M-N bonding strength. The adjustable peak emission wavelength is 610-670nm, and it has excellent luminous efficiency and stability. It is primarily used for packaging high-color-rendering white LEDs. Through the use of a kind of such a phosphor, the color rendering index of white LEDs can reach as high as 95 or more.

With over two decades of experience in manufacturing top-quality Nitride Phosphor at extremely competitive prices for sale, Stanford Advanced Materials (SAM) is a professional Nitride Phosphor supplier around the world.

Nitride Phosphor Powder Specification


The highest wavelength of Nitride Phosphor is 610-670nm with high luminous efficiency and excellent stability. It is mainly used in the encapsulation of high-color rendering white LEDs. White LEDs can reach a color rendering index of 95 or higher with this type of phosphor.

As a global supplier of Nitride Phosphor, Stanford Advanced Materials (SAM) has over two decades of experience in manufacturing and exporting high-purity Nitride Phosphor at very competitive prices.


Type

Model

Color

Chromaticity Coordinates

CIE 1931

Spectral Performance

x

y

Chip Excitation Wavelength (nm)

Peak Wavelength λp (nm)

Nitride

SAM-R-6237

red

0.634

0.366

350-550

612

SAM-R-6336

light red

0.633

0.366

350-550

615

SAM-R-6534

red

0.653

0.340

350-550

625

SAM-R-6633

Pink

0.663

0.335

350-550

630

SAM-R-6831

deep red

0.680

0.319

350-550

645

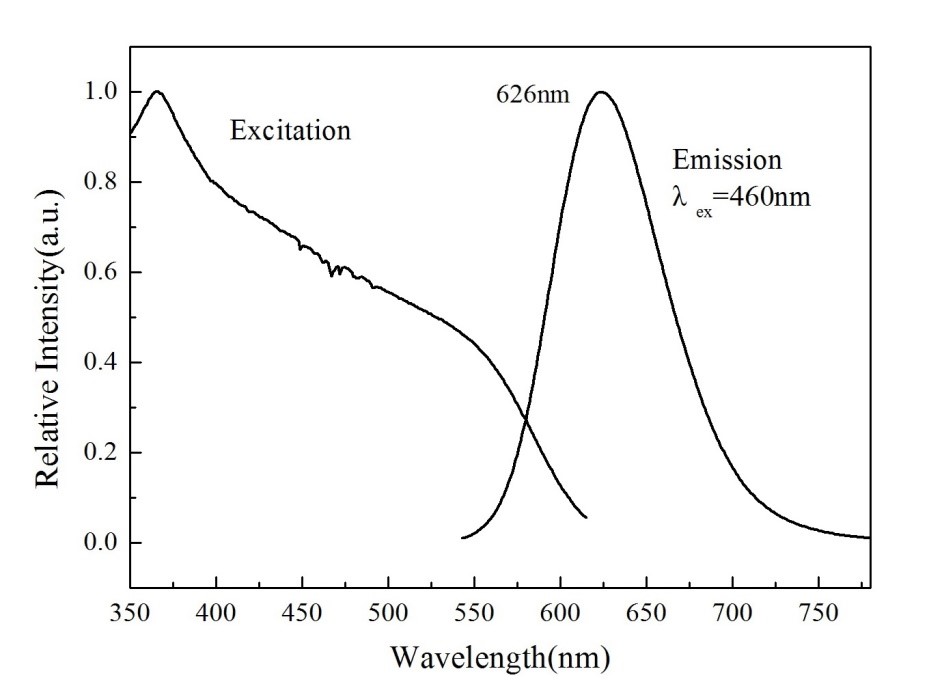

Nitride Phosphor Powder Spectrum



Nitride Phosphor Powder Applications


-General Lighting

-LED retrofit lamps

-Architectural

-Retail display

-Commercial / industrial

-Entertainment

-Automotive interior lighting

-Display Backlighting

-TV and monitor

-Tablet PC and mobile display,etc.
