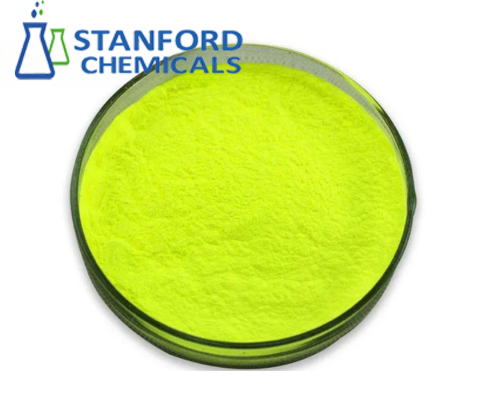

PM2860 Silicate Phosphor Powder
| Catalog No. | PM2860 |
| Color | Yellow, Green, Orange |
| Particle Size | D50 10-20 um |
| Excitation Range | 360nm-500nm |
| Color Point (x,y) | 0.226-0.573, 0.419-0.620 |
| Emission Peak Wavelength | 505nm-590nm |
Silicate Phosphor is one kind of rare earth luminescent materials with good chemical stability, excellent aging performance, high light conversion efficiency, good crystallinity, and light transmission. Stanford Advanced Materials (SAM) offers high-quality Silicate Phosphor at a very competitive price.
Related products: Yellow Green Aluminate Phosphor Powder, green Silicate Phosphor, Aluminate Phosphor Powder,
Description
Silicate Phosphor Powder Description
Silicate phosphor includes silicate green, yellow, and orange phosphor. Silicate green phosphor is mainly used in the packaging of high-color rendering white LEDs and green LEDs; silicate yellow phosphor is mainly used in small-size backlight LED packages; silicate orange phosphor is mainly used in warm white LED packages.
Features:
- High efficiency, >96%
- Wide choice of colors: green, yellow, orange, 505-590nm
- Narrow emission peak, 70-82nm FWHM
- Broad excitation range, UV-Violet-Blue
Silicate Phosphor Powder Specifications
Silicate phosphor includes silicate green, yellow, and orange phosphor. Silicate green phosphor is mainly used in the packaging of high-color rendering white LEDs and green LEDs; silicate yellow phosphor is mainly used in small-size backlight LED packages; silicate orange phosphor is mainly used in warm white LED packages.
Features:
• High efficiency, >96%
• Wide choice of colors: green, yellow, orange, 505-590nm
• Narrow emission peak, 70-82nm FWHM
• Broad excitation range, UV-Violet-Blue
Silicate Phosphor Powder Specification
|
Type |
Model |
Color |
Chromaticity Coordinates CIE 1931 |
Spectral Performance |
||
|
x |
y |
Chip Excitation Wavelength (nm) |
Peak Wavelength λp (nm) |
|||
|
Silicate |
LMS-1858-B |
green |
0.187 |
0.588 |
360-480 |
505 |
|
LMS-2564-B |
green |
0.258 |
0.646 |
360-480 |
517 |
|
|
LMS-2762-B |
green |
0.282 |
0.638 |
360-480 |
521 |
|
|
LMS-3560-B |
green |
0.350 |
0.606 |
360-480 |
529 |
|
|
LMS-3957-B |
light yellow |
0.395 |
0.575 |
360-480 |
538 |
|
|
LMS-4056-B |
light yellow |
0.405 |
0.568 |
360-480 |
541 |
|
|
LMS-4254-B |
light yellow |
0.425 |
0.545 |
360-480 |
544 |
|
|
LMS-4453-B |
yellow |
0.443 |
0.534 |
360-480 |
550 |
|
|
LMS-4949-B |
dark yellow |
0.494 |
0.493 |
360-480 |
565 |
|
|
LMS-5445-B |
orange red |
0.542 |
0.456 |
360-500 |
577 |
|
|
LMS-5444-B |
orange red |
0.549 |
0.448 |
360-500 |
580 |
|
|
LMS-5544-B |
orange red |
0.558 |
0.440 |
360-500 |
583 |
|
|
LMS-5742-B |
orange red |
0.575 |
0.423 |
360-500 |
585 |
|
|
LMS-5841-B |
orange red |
0.583 |
0.415 |
360-500 |
590 |
|
|
LMS-5940-B |
orange red |
0.593 |
0.406 |
360-500 |
592 |
|
Silicate Phosphor Powder Applications
-Mobile Display
-Smartphone
-Tablet PC
-Laptop
-GPS
-Portable and Lower Power Lighting
-Flashlight
-Task Lamp
-Lantern
